Your location:Home>Products>Aluminum Load Cell

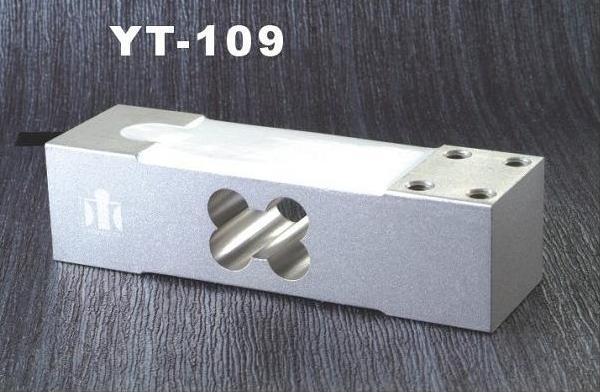

             Model   YT-109

             Material: Aluminum

             Capacity: 50~500kg

             Special Features: resolution can up to 15,000 counts

             Application: electronic platform scale







Technical Data -



Capacity

kg

50 , 100 , 150 , 200 , 250 , 300 , 500

Sensitivity

mV/V

2.0±0.1

Linearity error

%FS

±0.02

Hysteresis error

%FS

±0.02

Repeatability error

%FS

±0.01

Creep

%FS(5mins)

±0.02

Four corners error

%FS

±0.02

Zero output

%FS

±2.0

Temperature effect on zero

%FS/10

±0.02

Temperature effect on sensitivity

%FS/10

±0.02

Input resistance

Ω

410±10

Output resistance

Ω

350±2

Insulation resistance

MΩ

5000

Reference excitation voltage

V(DC/AC)

1-10

Compensated temperature range

10~50

OperatingTemperatureRange

20~60

Safe overload

%FS

150

Protection Class

IP65

Cable

Φ5mm×2m

InputRed() Black()

OutputGreen() White()

Recommended platform size

mm

450×450

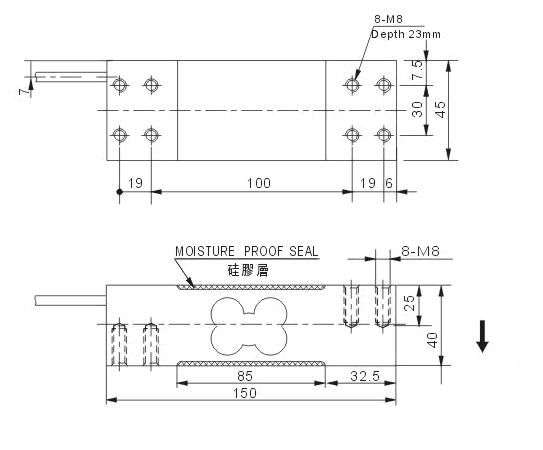

Dimensions
