YT-111
Model YT-111
Material: Aluminum
Capacity: 50~2000kg
Special Features: resolution can up 15,000 counts
Application: electronic platform scale
Technical Data -
Capacity
kg
50 , 100 , 200 , 250 , 500 , 750 , 1000 , 1500 , 2000
Sensitivity
mV/V
2.0±0.1
Linearity error
%FS
±0.02
Hysteresis error
Repeatability error
±0.01
Creep
%FS(5min)
Four corners error
Zero output
±2.0
Temperature effect on zero
%FS/10℃
Temperature effect on sensitivity
Input resistance
Ω
410±10
Output resistance
350±2
Insulation resistance
MΩ
≥5000
Reference excitation voltage
V(DC/AC)
1-10
Compensated temperature range
℃
-10~+50
OperatingTemperatureRange
-20~+60
Safe overload
150
Protection Class
IP65
Cable
Φ5mm×3m
Input:Red(+) Black(-)
Output:Green(+) White(-)
Recommended platform size
mm
50~200kg:600×600
250~500kg: 800×600
750~2000kg: 1200×1200

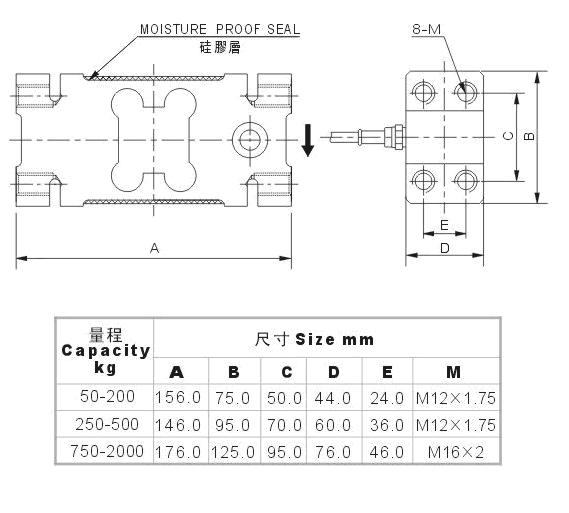

Dimensions -
