Your location:Home>Products>Steel Load Cell



Model  YT-201

Material:  Alloy Steel; Stainless Steel

Capacity:  0.5t~10t

Special Features:  Simple to install, easy to use, interchangeable,

Application:  ultrathin truck scale, one-track crane scale,

                         hopper scale, etc.





Technical Data -



Capacity

t

0.05~2; 2.5~5; 7.5~10

Sensitivity

mV/V

2.00±0.01 / 3.00±0.01

Linearity error

%FS

±0.02

Hysteresis error

%FS

±0.02

Repeatability error

%FS

±0.01

Creep

%FS(5mins)

±0.02

Four corners error

%FS

±0.02

Zero output

%FS

±1.0

Temperature effect on zero

%FS/10

±0.02

Temperature effect on sensitivity

%FS/10

±0.02

Input resistance

Ω

385±10

Output resistance

Ω

350±3

Insulation resistance

MΩ

5000

Reference excitation voltage

V(DC/AC)

10

Compensated temperature range

-10~50

OperatingTemperatureRange

-20~60

Safe overload

%FS

120

Cable

Φ5mm×6m(10m)

InputRed() Black()

OutputGreen() White()

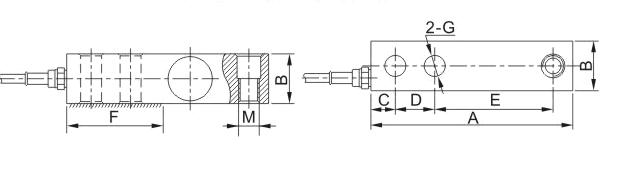

Dimensions -



量程 Capacity

尺寸 SIZE mm

螺纹 Thread M

t

Klb

A

B

C

D

E

F

G

公制mm

英制Inch

0.05-2

0.1-5se

130.0

32

15.7

25.4

76.2

57.0

13.5

M12×1.75

1/2-20

2.5-5

5-10

171.5

38

19.1

38.1

95.3

76.0

20.0

M18×1.5

3/4-16

7.5-10

15-20

222.5

50.8

25.4

50.8

123.8

102.0

27.0

M24×2

1’’-14
