YT-207
Model YT-207
Material: Alloy Steel
Capacity: 3~200t
Special Features: Low profile, multiple potting, corrosion and
shock resistance;Surface plating, anti-corrosive;
Application: various industrial measuring.
Technical Data -
Capacity
t
3~5; 20; 50; 100; 200
Sensitivity
mV/V
1.5±0.01
Linearity error
%FS
±0.3
Hysteresis error
Repeatability error
±0.1
Creep
%FS(5min)
Zero output
±1
Temperature effect on zero
%FS/10℃
Temperature effect on sensitivity
Input resistance
Ω
385±10
Output resistance
350±3
Insulation resistance
MΩ
≥5000
Reference excitation voltage
V(DC/AC)
10
Compensated temperature range
℃
-10~＋55
OperatingTemperatureRange
-20~＋70
Safe overload
150
Cable
Input：Red(＋) Black(－)
Output：Green(＋) White(－)

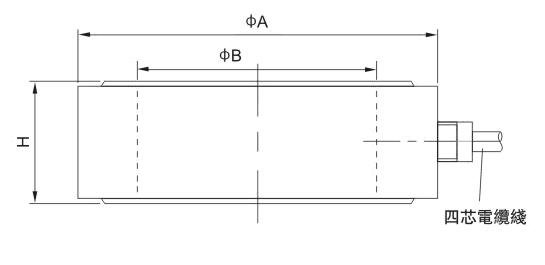

Dimensions -
量程Capacity
外圈ØA（mm）
内圈ØB（mm）
高度H（mm）
3~5t
90
60
30
20t
55
20
70
50t
112
100t
139
92
80
200t
176
117
