YT-209
Model YT-209
Material: Alloy Steel Stainless Steel
Capacity: 5~20t
Special Features: high accuracy, anti-deflective, shock resistance; simple to install
Application: crane scale
Technical Data -
Capacity
T
5; 10; 20
Sensitivity
mV/V
2.0±0.025
Linearity error
%FS
±0.02 / 0.03
Hysteresis error
Repeatability error
±0.2
Creep
%FS(5min)
Zero output
±1
Temperature effect on zero
%FS/10℃
±0.02
Temperature effect on sensitivity
Input resistance
Ω
385±10
Output resistance
350±3
Insulation resistance
MΩ
≥5000
Reference excitation voltage
V(DC/AC)
10
Compensated temperature range
℃
-10~＋50
OperatingTemperatureRange
-20~＋60
Safe overload
120
Cable
Φ5mm×0.5m
Input：Red(＋) Black(－)
Output：Green(＋) White(－)

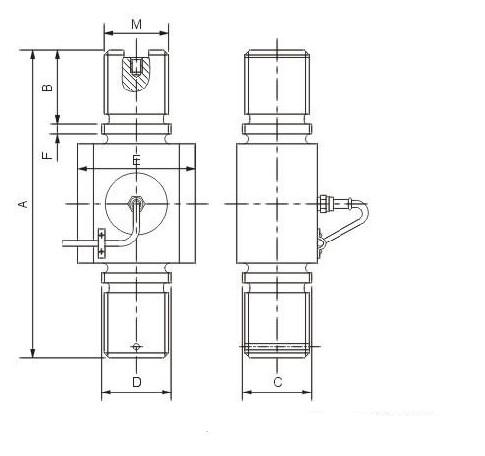

Dimensions -
量程 Capacity t 尺寸 Size mm A B C D E F M 5 206.0 48.0 45.0 55.0 66.0 8.0 M36×3 10 206.0 48.0 55.0 55.0 80.0 8.0 M42×3 20 250.0 60.0 56.0 55.0 95.0 8.0 M52×3
量程
t
尺寸 Size mm
A
B
C
D
E
F
M
5
206.0
48.0
45.0
55.0
66.0
8.0
M36×3
80.0
M42×3
20
250.0
60.0
56.0
95.0
M52×3
