Model YT-111
Material: Alloy Steel Stainless Steel
Capacity: 10~200KLB
Special Features: double shear beam, self-resetting; side force
resistance and shock resistance, simple to
install, easy to use, interchangeability
Application: truck scale, railroad scale, hopper scale, etc.
Technical Data -
|
Capacity
|
Klb
|
10~25; 40~50se; 50~75; 100~125; 200
|
|
Sensitivity
|
mV/V
|
3.0±0.01
|
|
Linearity error
|
%FS
|
±0.03
|
|
Hysteresis error
|
%FS
|
±0.03
|
|
Repeatability error
|
%FS
|
±0.02
|
|
Creep
|
%FS(5mins)
|
±0.03
|
|
Zero output
|
%FS
|
±1
|
|
Temperature effect on zero
|
%FS/10℃
|
±0.03
|
|
Temperature effect on sensitivity
|
%FS/10℃
|
±0.03
|
|
Input resistance
|
Ω
|
770±10
|
|
Output resistance
|
Ω
|
700±3
|
|
Insulation resistance
|
MΩ
|
≥5000
|
|
Reference excitation voltage
|
V(DC/AC)
|
10
|
|
Compensated temperature range
|
℃
|
-10~＋50
|
|
OperatingTemperatureRange
|
℃
|
-20~＋60
|
|
Safe overload
|
%FS
|
120
|
|
Cable
|
Φ6mm×10m
Input：Red(＋) Black(－)
Output：Green(＋) White(－)
|

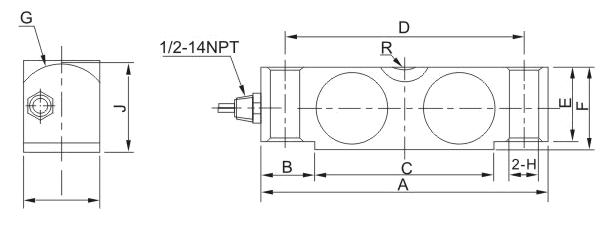

Dimensions -
|
量程
Capacity
t
|
尺寸 Size mm
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
R
|
|
10~25
|
197.0
|
35.0
|
127.0
|
165.0
|
43.2
|
49.3
|
22.9
|
18.0
|
43.4
|
47.5
|
19.0
|
|
40~50se
|
260.4
|
49.0
|
162.4
|
216.0
|
53.8
|
62.0
|
28.5
|
20.6
|
50.0
|
59.4
|
25.4
|
|
50~75
|
260.4
|
49.0
|
162.3
|
216.0
|
67.0
|
74.7
|
34.8
|
26.9
|
61.7
|
72.1
|
25.4
|
|
100~125
|
387.0
|
80.0
|
227.0
|
324.0
|
87.0
|
98.0
|
45.7
|
41.5
|
73.9
|
94.7
|
38.1
|
|
200
|
489.0
|
101.6
|
285.8
|
387.0
|
130.0
|
147.3
|
45.7
|
41.5
|
96.5
|
130.1
|
50.8
|
