Your location:Home>Products>Aluminum Load Cell



         Model   YT-103

         Material: Aluminum

         Capacity: 0.3~3kg

         Features: high precision; resolution can up to 200,000 counts

         Application: high accuracy electronic balance





Technical Data -

Capacity

kg

0.3 , 0.5 , 2 , 3

Sensitivity

mV/V

0.9±0.1

Linearity error

%FS

±0.01

Hysteresis error

%FS

±0.01

Repeatability error

%FS

±0.005

Creep

%FS(5mins)

±0.015

Four corners error

%FS

±0.02

Zero output

%FS

±2.0

Temperature effect on zero

%FS/10

±0.02

Temperature effect on sensitivity

%FS/10

±0.02

Input resistance

Ω

410±10

Output resistance

Ω

350±2

Insulation resistance

MΩ(50V DC)

5000

Reference excitation voltage

V(DC/AC)

1-10

Compensated temperature range

10~40

OperatingTemperatureRange

10~60

Safe overload

%FS

150

Protection Class

IP65

Cable

Φ3mm×0.4m

InputRed() Black()

OutputGreen() White()

Recommended platform size

mm

200×200

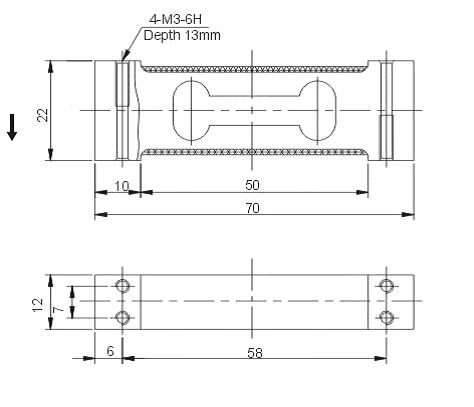

Dimensions -
