Your location:Home>Products>Aluminum Load Cell




       Model   YT-104

       Material: Aluminum

       Capacity: YT-104: 3-50kg

       Special Features: resolution can up to 100,000 counts

       Application: electronic price computing scale and counting scale





 Technical Data-



Capacity

kg

3 , 6 , 10 , 20 , 30 , 40 , 50

Sensitivity

mV/V

2.0±0.1

Linearity error

%FS

±0.015

Hysteresis error

%FS

±0.015

Repeatability error

%FS

±0.01

Creep

%FS(5mins)

±0.02

Four corners error

%FS

±0.02

Zero output

%FS

±2.0

Temperature effect on zero

%FS/10

±0.02

Temperature effect on sensitivity

%FS/10

±0.02

Input resistance

Ω

410±10

Output resistance

Ω

350±2

Insulation resistance

MΩ

5000

Reference excitation voltage

V(DC/AC)

1-10

Compensated temperature range

10~50

OperatingTemperatureRange

20~60

Safe overload

%FS

150

Protection Class

IP65

Cable

Φ4mm×0.4m

InputRed() Black()

OutputGreen() White()

Recommended platform size

mm

300×350

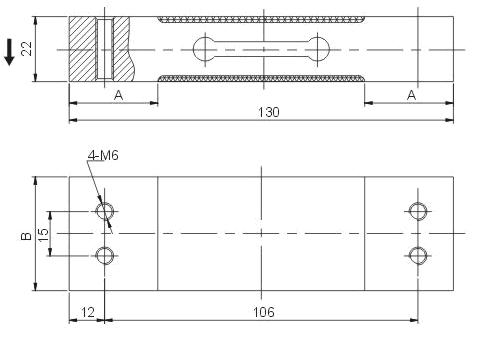

 Dimensions -





                                                   A=25  B=30
