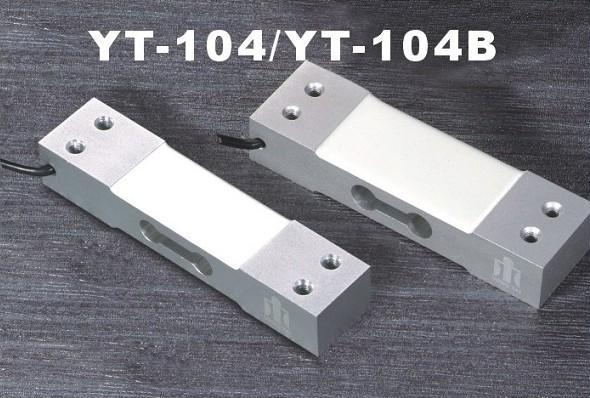

        Model   YT-104B

        Material: Aluminum

        Capacity: 30-100kg

        Special Features: resolution can up to 100,000 counts

        Application: electronic price computing scale and counting scale







Technical Data -



Capacity

kg

30, 60 , 80 , 100

Sensitivity

mV/V

2.0±0.1

Linearity error

%FS

±0.015

Hysteresis error

%FS

±0.015

Repeatability error

%FS

±0.01

Creep

%FS(5mins)

±0.02

Four corners error

%FS

±0.02

Zero output

%FS

±2.0

Temperature effect on zero

%FS/10

±0.02

Temperature effect on sensitivity

%FS/10

±0.02

Input resistance

Ω

410±10

Output resistance

Ω

350±2

Insulation resistance

MΩ

5000

Reference excitation voltage

V(DC/AC)

1-10

Compensated temperature range

10~50

OperatingTemperatureRange

20~60

Safe overload

%FS

150

Protection Class

IP65

Cable

Φ4mm×0.4m

InputRed() Black()

OutputGreen() White()

Recommended platform size

mm

300×350

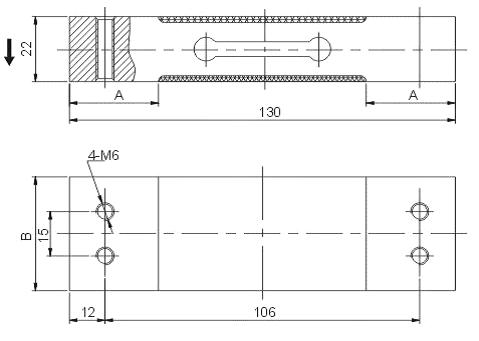

 Dimensions -




                                     A=30   B=38.5
