YT-202
Model YT-202
Material: Alloy Steel; Stainless Steel
Capacity: 5~20000kg
Special Features: Simple to install, compact structure
Application: electromechanical scale, crane scale,
hopper scale, etc.
Technical Data -
Capacity
t
0.005~0.05; 0.1~0.5; 1~2; 2.5~5; 10; 20
Sensitivity
mV/V
2.00±0.01 / 3.00±0.01
Linearity error
%FS
±0.02
Hysteresis error
Repeatability error
±0.01
Creep
%FS(5mins)
Zero output
±1.0
Temperature effect on zero
%FS/10℃
Temperature effect on sensitivity
Input resistance
Ω
385±10
Output resistance
350±3
Insulation resistance
MΩ
≥5000
Reference excitation voltage
V(DC/AC)
10
Compensated temperature range
℃
-10~+50
OperatingTemperatureRange
-20~+60
Safe overload
120
Cable
Φ5mm×5m
Input:Red(+) Black(-)
Output:Green(+) White(-)

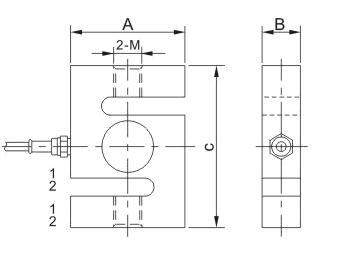

Dimensions -
量程Capacity
尺寸 Size mm
螺纹 Thread
Klb
T
A
B
C
公制mm
英制mm
0.025~0.1
0.005~0.05
51.0
13.0
64.0
M8×1.25
1/4-28
0.2~1.5
0.1~0.5
19.1
76.0
M12×1.75
1/2-20
2~4
1~2
54.0
25.4
5~10
2.5~5
108.0
M18×1.5
3/4-16
20
127.0
178.0
M30×2
1-1/2
40
140
60.0
188.0
M39×2
