Model YT-203
Material: Alloy Steel; Stainless Steel
Capacity: 1~5t
Special Features: Low profile (just16.8mm),designed for
portable axle load scale
Application: compact and small size scales, overload detector,
overload warning device, etc.
Technical Data -
|
Capacity
|
t
|
1, 2, 3, 5
|
|
Sensitivity
|
mV/V
|
1.5±0.01
|
|
Linearity error
|
%FS
|
0.1/0.3
|
|
Hysteresis error
|
%FS
|
0.1/0.3
|
|
Repeatability error
|
%FS
|
0.1
|
|
Creep
|
%FS(5mins)
|
0.3
|
|
Zero output
|
%FS
|
±2
|
|
Temperature effect on zero
|
%FS/10℃
|
0.1/0.3
|
|
Temperature effect on sensitivity
|
%FS/10℃
|
0.1/0.3
|
|
Input resistance
|
Ω
|
780±30
|
|
Output resistance
|
Ω
|
700±5
|
|
Insulation resistance
|
MΩ
|
≥2000
|
|
Reference excitation voltage
|
V(DC/AC)
|
6-15
|
|
Compensated temperature range
|
℃
|
-10~＋55
|
|
OperatingTemperatureRange
|
℃
|
-20~＋70
|
|
Safe overload
|
%FS
|
150
|
|
Cable
|
Input：Red(＋) Black(－)
Output：Green(＋) White(－)
|

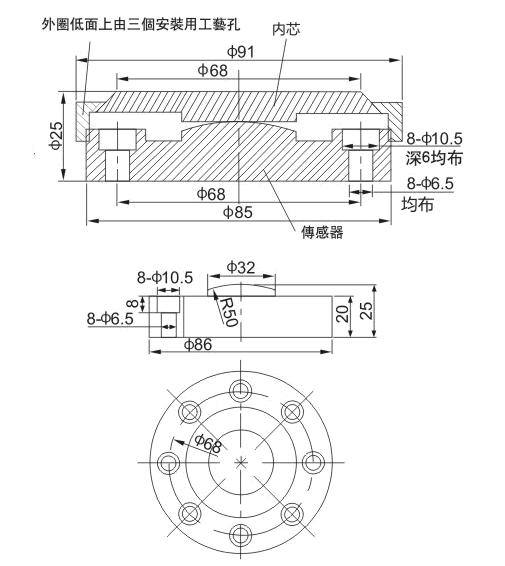

Dimensions -
