Model YT-204
Material: Alloy Steel
Capacity: 0.5~5t
Special Features: Bridge type, high accuracy, interchangeability;
Install by wire rope, won’t affect hoisting height;
Simple weighing accessories;
Application: steel rope tension testing, overload warning
device, etc.
Technical Data -
|
Capacity
|
t
|
0.5~1; 1.5~2; 3; 5
|
|
Sensitivity
|
mV/V
|
1.0±0.02
|
|
Linearity error
|
%FS
|
0.05/0.1
|
|
Hysteresis error
|
%FS
|
0.05
|
|
Repeatability error
|
%FS
|
0.02
|
|
Creep
|
%FS(5min)
|
0.05/0.1
|
|
Zero output
|
%FS
|
±1
|
|
Temperature effect on zero
|
%FS/10℃
|
0.05/0.1
|
|
Temperature effect on sensitivity
|
%FS/10℃
|
0.05/0.1
|
|
Input resistance
|
Ω
|
370±20 / 750±20
|
|
Output resistance
|
Ω
|
350±3 / 700±3
|
|
Insulation resistance
|
MΩ
|
≥5000
|
|
Reference excitation voltage
|
V(DC/AC)
|
10
|
|
Compensated temperature range
|
℃
|
-10~＋55
|
|
OperatingTemperatureRange
|
℃
|
-20~＋70
|
|
Safe overload
|
%FS
|
150
|
|
Cable
|
Input：Red(＋) Black(－)
Output：Green(＋) White(－)
|

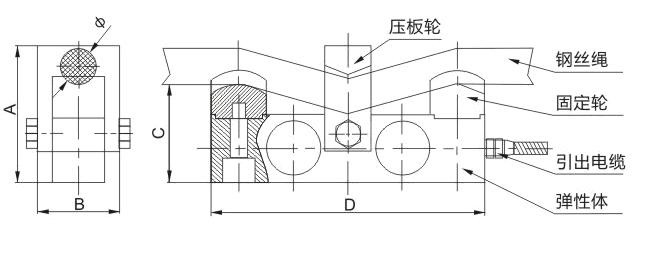

Dimensions -
|
量程Capacity
|
A
|
B
|
C
|
D
|
f
|
|
0.5~1t
|
73
|
48
|
39
|
200
|
6~14
|
|
1.5~2t
|
73
|
68
|
42
|
260
|
10~18
|
|
3t
|
73
|
60
|
54
|
180
|
16~26
|
|
5t
|
100
|
60
|
72
|
200
|
24~36
|
