Your location:Home>Products>Steel Load Cell



Model   YT-205

Material:  Stainless Steel

Capacity:  0.5~30t

Special Features:  Compact structure, corrosion and shock

                                    resistance;Quick dynamic response, stable

                                    working in severe environment

Application:  dynamic rail weighbridge, truck scale,

                         hopper scale, tank scale, etc.



Technical Data -



Capacity

t

0.5, 1, 2, 3, 5, 10, 20, 30

Sensitivity

mV/V

1.0±0.01

Linearity error

%FS

±0.03/0.05

Hysteresis error

%FS

±0.03/0.05

Repeatability error

%FS

±0.01

Creep

%FS(5min)

±0.02

Zero output

%FS

±1

Temperature effect on zero

%FS/10

±0.03

Temperature effect on sensitivity

%FS/10

±0.03

Input resistance

Ω

350±3

Output resistance

Ω

385±10

Insulation resistance

MΩ

5000

Reference excitation voltage

V(DC/AC)

10

Compensated temperature range

-10~55

OperatingTemperatureRange

-20~70

Safe overload

%FS

150

Cable

InputRed() Black()

OutputGreen() White()

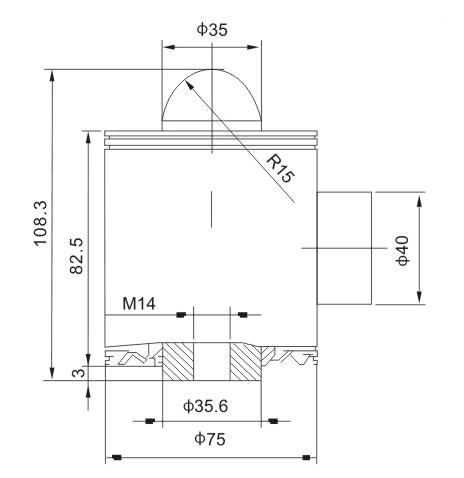

Dimension
